STANDARD PRODUCTS

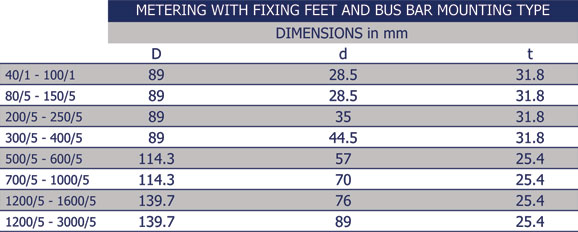

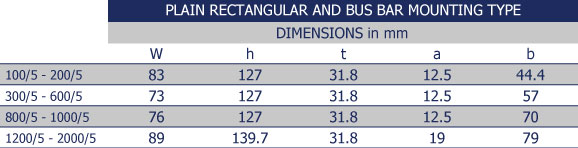

The tables below show some of our standard product dimensions for your information. This is not the full extent of what we can offer you, please contact us to discuss your specific requirements.

go to frequently asked questions page
enlarge diagram and table in new window
enlarge diagram and table in new window

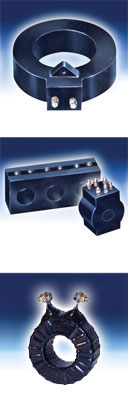

some of our standard encapsulated current transformers
enlarge diagram and table in new window
enlarge diagram and table in new window

PRODUCTS & SERVICES
The product information below is a guide, and the product variations listed are a small selection of those we produce. We list some standard products for your reference but please remember the majority of our orders are custom made and it is likely that yours will be too, so please contact us if you would like to discuss.

call +44 (0)1922 621329

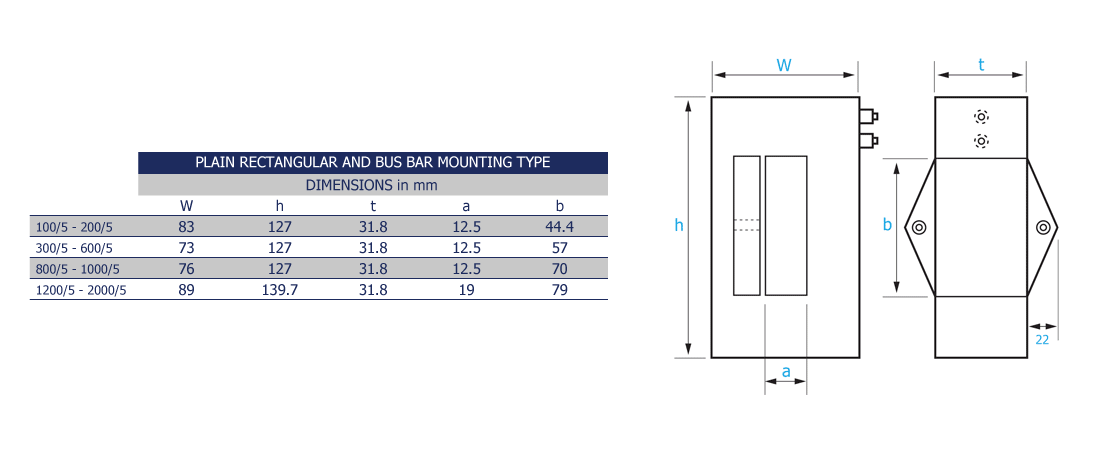

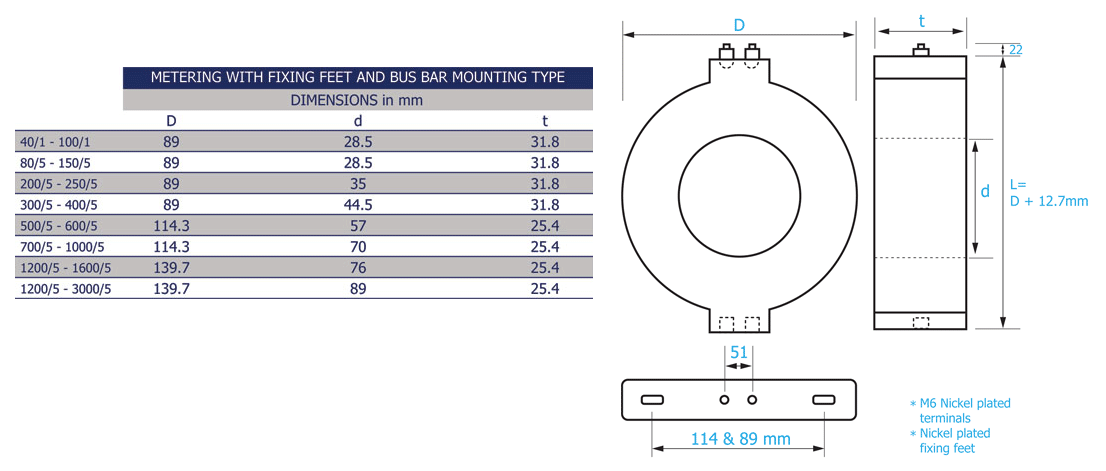

ENCAPSULATED RECTANGULAR or RING CURRENT TRANSFORMERS
These current transformers are encapsulated in resin. The standard range offers both measuring and protective types with either the rectangular or circular slot sized to fit busbars from 20mm to 250mm and can be manufactured in a variety of ratios from 60A to 6000A.



TAPED RECTANGULAR or RING CURRENT TRANSFORMER
These current transformers are insulated using tape and so can be designed without the restrictions of encapsulation and to suit extreme applications.
